High-performance positioning systems for smooth, accurate linear motion

IKO designs and manufactures several roller type guides to achieve precise linear machine motion across a wide range of industries, from machine tools to semiconductor manufacturing. C-Lube Linear Roller Way Super MX guides and Linear Roller Way Super X LRX guides are high-performance roller style component families that offer high rigidity and high accuracy along with repeatable and smooth linear motion.

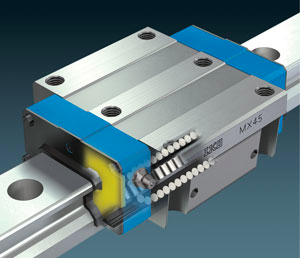

C-Lube Linear Roller Way

C-Lube Linear Roller Way Super MX guides are designed for maintenance-free operation.



  • Built-in lubricating element provides long lasting, maintenance-free operation through capillary action. Zero maintenance guaranteed for 20,000 km or 5 years.

  • Superior dust protection is available with optional C-Wiper for continuous cleaning in extreme environments.

  • Four rows of cylindrical rollers are enclosed in a highly rigid casing.

  • Minimal elastic deformation ensures stable and reliable operation under heavy or fluctuating loads, as well as vibration and shock loads.
  • Four slide unit lengths available including short, standard, high rigidity long and high rigidity extra long.

  • Minimal lubrication requirements make our C-Lube products environmentally friendly.

  • Interchangeable outside dimensions between MX and LRX series.

  • Five sectional shapes available include: top or bottom mount flange type, top-mount low profile flange type, top-mount block type, top-mount compact block type, and top-mount low profile block type.

Linear Roller Way Super X LRX guides are designed for heavy-duty operation.



  • Four rows of cylindrical rollers are enclosed in a highly rigid casing.

  • Minimal elastic deformation ensures stable and reliable operation under heavy or fluctuating loads, as well as vibration and shock loads.

  • Four slide unit lengths available including short, standard, high rigidity long and high rigidity extra long.

  • Two sectional shapes available including flange type for mounting from the upper or lower side of the bearing and a top mounting block style for narrow widths.

  • Interchangeable outside dimensions between LRX and MX series. Mounting dimensions are also the same as the ball type Linear Way H for easy replacement as needed.

  • Optional stainless steel version provides excellent corrosion resistance for use in clean environments such as medical equipment and semiconductor manufacturing.
